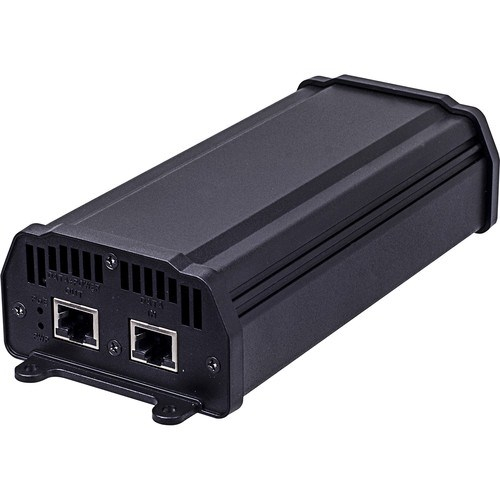

Buy Vivotek AP-GIC-011A-095, 95W PoH/PoE Injector with Surge Protection

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

The 95W PoH/PoE Injector from Vivotek extends Ethernet signal and powers network cameras over a single Ethernet connection up to 328'. It features 12 kV surge protection, over-current protection, short-circuit protection, and PoE PD auto detection. This Power over HDBaseT / Power over Ethernet injector operates on 100 to 240 VAC input, provides 95W of output power, and supports 802.3at standards.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Ethernet	1 x RJ45, Ethernet input port 1 x RJ45, PoE Ethernet output port
Standards	IEEE 802.3 10Base-T (Ethernet) IEEE 802.3u 100Base-TX (fast Ethernet) IEEE 802.3ab 1000Base-TX (Gigabit Ethernet) IEEE 802.3at PoE
Transmission Media	10Base-T: Cat 3, 4, 5 UTP/STP 100Base-TX: Cat 5, 5e UTP/STP 1000Base-TX: Cat 5e, 6, 7 UTP/STP
Maximum Distance	328' / 100 m
Output Power	54 VDC / 95 W
Power Pin Assignment	1/2(-), 3/6(+), 4/5(+), 7/8(-)
Detection	PoE PD auto detection
Indicators	1 x LED, power 1 x LED, PoE
Power Input	100-240 VAC, 50/60 Hz
Power Consumption	100 W
Surge Protection	12 kV
Surge Protected Power	4 kV
Operating Temperature	-4 to 86°F / -20 to 30°C at 95 W -4 to 104°F / -20 to 40°C at 80 W -4 to 122°F / -20 to 50°C at 70 W
Storage Temperature	-4 to 158°F / -20 to 70°C
Humidity (Non-Condensing)	10 to 90%
Certifications	CE, C-Tick, FCC, VCCI, LVD
Dimensions	7.2 x 3.1 x 1.7" / 18.2 x 7.9 x 4.2 cm
Weight	1.3 lb / 580 g
Package Weight	1.9 lb
Box Dimensions (LxWxH)	8.5 x 6.5 x 2"

Product Details

Ethernet	1 x RJ45, Ethernet input port 1 x RJ45, PoE Ethernet output port
Standards	IEEE 802.3 10Base-T (Ethernet) IEEE 802.3u 100Base-TX (fast Ethernet) IEEE 802.3ab 1000Base-TX (Gigabit Ethernet) IEEE 802.3at PoE
Transmission Media	10Base-T: Cat 3, 4, 5 UTP/STP 100Base-TX: Cat 5, 5e UTP/STP 1000Base-TX: Cat 5e, 6, 7 UTP/STP
Maximum Distance	328' / 100 m
Output Power	54 VDC / 95 W
Power Pin Assignment	1/2(-), 3/6(+), 4/5(+), 7/8(-)
Detection	PoE PD auto detection
Indicators	1 x LED, power 1 x LED, PoE
Power Input	100-240 VAC, 50/60 Hz
Power Consumption	100 W
Surge Protection	12 kV
Surge Protected Power	4 kV
Operating Temperature	-4 to 86°F / -20 to 30°C at 95 W -4 to 104°F / -20 to 40°C at 80 W -4 to 122°F / -20 to 50°C at 70 W
Storage Temperature	-4 to 158°F / -20 to 70°C
Humidity (Non-Condensing)	10 to 90%
Certifications	CE, C-Tick, FCC, VCCI, LVD
Dimensions	7.2 x 3.1 x 1.7" / 18.2 x 7.9 x 4.2 cm
Weight	1.3 lb / 580 g
Package Weight	1.9 lb
Box Dimensions (LxWxH)	8.5 x 6.5 x 2"
