Buy Sharp XP-M421W-W, M Series 4200 Lumen 1080 Laser DLP Projector

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Light Output (Lumens):: Light Output (Lumens): 4200

XP-M421W-W Includes Only:

Projector
Remote Control, (2) AAA Batteries
Power Cord w/ AC Adapter
HDMI Cable
Lens Cap

Features:

Long-lasting, maintenance-free laser light source reduces total cost of ownership compared to lamp-based projectors
DLP technology provides a filter-free projection solution
Compact design improves manufacturing and logistics efficiencies for a smaller carbon footprint
Utilize ECO settings and benefit from lower power consumption for a more sustainable projection solution.

M Series laser projectors provide the essential features that you need to simply and reliably present to your audience at an affordable price. The 4200-lumen, WXGA (1280 x 800) resolution Sharp M421W is ideal for K-12 classrooms or small meeting spaces that need a clear image that can be seen all around the room. Enjoy the convenience of quick setup with direct power on and quick power off. The M Series offers a long term, maintenance free solution and a low total cost of ownership. Now is the time to switch to M Series laser and realize a more eco-friendly, sustainable projection solution.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Display

Aspect Ratio

16:9 (Supports 4:3, 16:10)

Screen Resolution

1080p 1920x1080

Maximum Resolution

Up to WUXGA (1920x1200) at 60Hz via HDMI

Contrast Ratio (typical)

50,000:1

Synchronization Range

Horizontal (Analog/Digital)

15-140kHz

Vertical

24-120Hz

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Macintosh Signal Compatibility

Yes

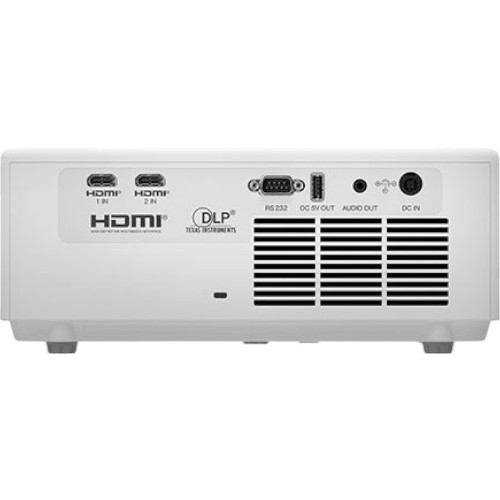

Input TerminalsRGB1(digital)

HDMI (v1.4b) w/ HDCP (v1.4)

RGB2(digital)

HDMI (v2.0) w/ HDCP (v2.2)

External Control

RS-232 (D-Sub 9pin), IR

Output Terminals Audio

Stereo Mini Jack

Audio Out

Stereo Mini Jack (variable)

Power Consumption (typical)

195W / 150W / 0.5W

Input Current

3.5A

Power Savings Mode

0.5 W

Power Requirements

100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)Product

10.9 x 4.5 x 8.5 in. / 278 x 115.5 x 216 mm

Shipping

10.2 lbs. (4.6 kg)

Environmental Conditions

Operating Temperature

32-104°F / 0-40°C up to 2,500'
32-95°F / 0-35°C 2,500' to 5,000'
32-86°F / 0-30°C 5,000' to 10,000'

Operating Altitude

0 to 3000 m (10,000 ft), 1500 m (5,000 ft) or more need Fan Mode setting: High Altitude

Storage Humidity

20 to 80% Humidity (Non-Condensing)

Operating Humidity

20 to 80% Humidity (Non-Condensing)

Storage Temperature

14-122°F / -10-50°C

Storage Altitude

0-12,000m / 0-39,370ft (above sea level)

Optical

Display Technology

0.65" DMD

Light Output(Lumens)

4,200 Lumens

Throw Ratio

1.19-1.54:1

Projector Angle

0 - 14.3° tele / 0 - 17.9° wide (at 100")

Keystone Correction

Manual (+/- 30° H/V (auto vertical))

Lamp Type

Laser/Phosphor

Light Source Life

Up to 20,000 hours (until 50% brightness)

Projection Distance

4.3 to 9.8 ft. / 1.3 to 3m

LensZoom

1.3x

Focus

Manual

F number, fnumber

F:2.43~2.78
f=16.90~21.61mm

Mechanical

Installation Orientation

Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

Regulations

USA: cTUV (UL62368-1 3rd ed.) FCC Part 15 Class B, Canada: CAN/CSA (62368-1:19 3rd ed.) ICES-003 Issue 7

Fan Noise

36dB (High Bright), 26dB (ECO mode)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
