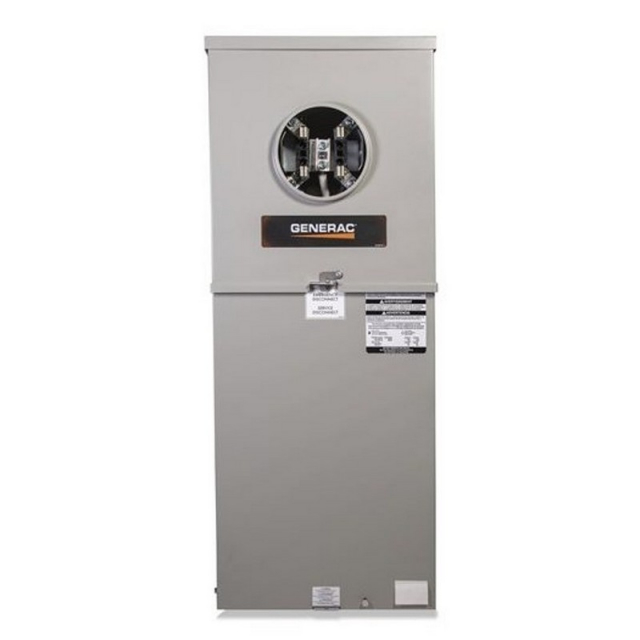

Generac, RXUW200A3, 200A Service Entrance Rated Integrated Meter Transfer Switch
Features:
- Service Entrance Rated - A service entrance disconnect is a device that interrupts excessive voltage and allows for manually disconnecting your home or business from the electrical utility.
- Integrated Meter Socket - Switches featuring the integrated meter are designed to be an all-in-one solution, and have a smaller footprint than installations with a separate meter base and transfer switch.
- Intelligent Load Management - Manage up to four HVAC loads with no additonal hardware needed, providing a more efficient system, and allowing you to reduce the size of the generator needed to protect your home.
Combining the meter socket and the automatic transfer switch, this Integrated Meter Service Entrance rated transfer switch is designed to be an all-in-one design that meets NEC® emergency disconnect requirements. Using the integrated load management technology, four individual HVAC loads can be managed with no additional accessories required.
The RXUW integrated meter transfer switch combines the meter socket and the automatic transfer switch, which saves installation time and labor. The allin-one design meets NEC emergency disconnect requirements and reduces overall clutter on the home's exterior for a cleaner, more appealing aesthetic. The open transition type transfer switch is designed for use with single phase generators using an Evolution™ or Nexus™ controller in optional standby applications. A horn bypass, 4 jaw meter socket, and ringless type cover come standard. Optional accessories, such as ring type covers and 5th jaws, are available to meet local requirements. The RXUW transfer switches are housed in an aluminum NEMA/ETL Type 3R enclosure suitable for either outdoor or indoor installation. The Heavy Duty Generac Contactor is an ETL recognized device, designed for years of service.
Intelligent Load Management
Each switch comes standard with a Smart A/C Management module (SACM) to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware. When used in tandem with Smart Management Modules (SMM), up to 8 loads can be managed, providing the most installation efficient power management options available.
Important Notice!
Before selecting this switch, verify that it is approved by your local Utility Service Provider.
For more information, please see
Data Sheet and Brochure
