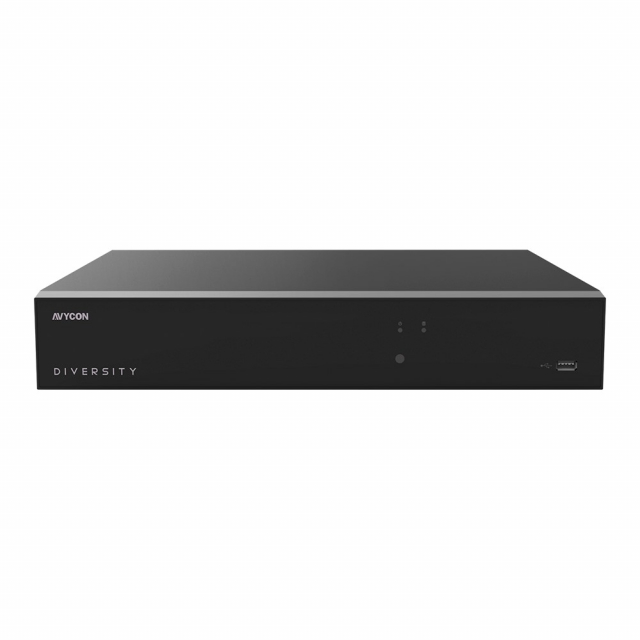

Buy AVYCON AVR-DSV532H-48T, 32 CH HD Digital Video Recorder with 48TB HDD

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

HDD Capacity:: HDD Capacity: 48TB

Avycon, AVR-DSV532H-48T, (NDAA) All-in-One Hybrid H.265 5MP Lite DVR, 5MP/4MP/3MP/1080P/720P/960H HD - 32 CHANNEL, 480FPS/240FPS at 5MP, 480FPS/240FPS at 4MP, 960FPS/480FPS at 2MP, 4K HDMI, VGA, CVBS, 16CH Audio, +8 P, 48TB HDD installed

Features:

H.265 Video codec
Max. 16Mbps input bandwidth
Support AHD/TVI/CVI/Analog 960H/IP Cameras
Up to 5MP Lite resolution for preview and Playback
Support to install up to 4 HDD, 10TB per HDD, max. total capacity of up to 40TB
Full function Network remote view via Internet (CMS, IE/Firefox/Chrome, Mac Safari)
No limitation on adding devices to CMS, max. 32 channels preview (CMSONE)
Support scan P2P QR code to connect DVR via Mobile app (AVY Mobile One)
Support to save pictures/Video to Dropbox Storage (Dropbox)
Support to save pictures/Video to FTP server (built by user)
VGA/HDMI output up to 4K resolution
Ability to convert up to 32 analog channels to have in total 36 IP channels (Total Bandwidth 16Mbps)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Video

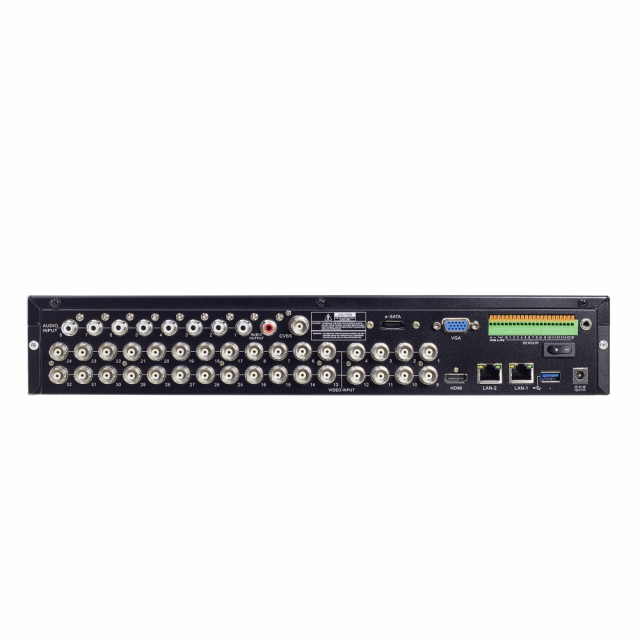

Analog Video Input	32CH input
IP Video Input	4CH, (only IP up to 36CH)
Total Video Input	36CH, (Analog + IP)
Output	HDMI x 1: EDID / 3840 x 2160(4K) / 2560 x 1440(2K) / 1920 x 1080 / 1440 x 900 / 1280 x 1024 / 1280 x 720 / 1024 x 768 VGA x 1: 1920 x 1080 / 1440 x 900 / 1280 x 1024 / 1280 x 720 / 1024 x 768 BNC x 1: 704 x 576
Incoming Bandwidth (Mbps)	16Mbps
Outgoing Bandwidth (Mbps)	216Mps
Video Compression	H.264 / H.265
Audio Compression	G.711a
Installation Wizard	Yes
HD Analog	5MP Lite at 20fps / 4MP / 1080P / 960P / 720P
IP	5MP / 4MP / 1080P / 720P
Playback
Playback Frame Rate	5MP - Lite:240fps, 4MP - Lite:320fps, 1080P:480fps, 720P:960fps
Smart AI	Yes
Event Triggers	MD(Sensitivity Level 1~8), Video Loss, Beep, Email, Push Notification to Mobile App
Playback Function	Fast forward / backward (2x, 4x, 8x,16x), Slow forward (1/2x, 1/4x, 1/8x,1/16x)
Playback	Max 16CH Playback
Interface
Local UI	UI5.0
Web Monitoring	IE10/11, Safari V12.1 above, Firefox V.52 above, Chrome V.57 above, Edge V.79 above
Mobile Viewer	AVY Mobile One
Push Notification	Motion Event, AI, and Abnormal
Password Reset	Password Reset (Hold 3 seconds), Factory Reset (Hold 8 seconds)
HDD Interface	SATA x 4, Max 10TB HDD
System
PoE	N/A
Ethernet	2 RJ45 100/1000 Base-T
USB	USB 2.0 x 1 (Front Panel), USB 3.0 x 1 (Rear Panel)
Audio	8 IN / 1 OUT
E-Sata	No
RS485	1
Alarm Input/out	16 IN / 1 OUT
General
OSD Language	English and more
Power Consumption	21W (Without HDD)
Power Supply	DC12V/5A
Working Environment	32°~104°F (0°~40° Celcius)
Working Humidity	Less than 90%RH (Non-Condensing)
Dimensions	14.88" x 13.30" x 2.68" (378mm x 337.7mm x 68mm)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Video
Analog Video Input	32CH input
IP Video Input	4CH, (only IP up to 36CH)
Total Video Input	36CH, (Analog + IP)
Output	HDMI x 1: EDID / 3840 x 2160(4K) / 2560 x 1440(2K) / 1920 x 1080 / 1440 x 900 / 1280 x 1024 / 1280 x 720 / 1024 x 768 VGA x 1: 1920 x 1080 / 1440 x 900 / 1280 x 1024 / 1280 x 720 / 1024 x 768 BNC x 1: 704 x 576
Incoming Bandwidth (Mbps)	16Mbps
Outgoing Bandwidth (Mbps)	216Mps
Video Compression	H.264 / H.265
Audio Compression	G.711a
Installation Wizard	Yes
HD Analog	5MP Lite at 20fps / 4MP / 1080P / 960P / 720P
IP	5MP / 4MP / 1080P / 720P
Playback
Playback Frame Rate	5MP - Lite:240fps, 4MP - Lite:320fps, 1080P:480fps, 720P:960fps
Smart AI	Yes
Event Triggers	MD(Sensitivity Level 1~8), Video Loss, Beep, Email, Push Notification to Mobile App
Playback Function	Fast forward / backward (2x, 4x, 8x,16x), Slow forward (1/2x, 1/4x, 1/8x,1/16x)
Playback	Max 16CH Playback
Interface
Local UI	UI5.0
Web Monitoring	IE10/11, Safari V12.1 above, Firefox V.52 above, Chrome V.57 above, Edge V.79 above
Mobile Viewer	AVY Mobile One
Push Notification	Motion Event, AI, and Abnormal
Password Reset	Password Reset (Hold 3 seconds), Factory Reset (Hold 8 seconds)
HDD Interface	SATA x 4, Max 10TB HDD
System
PoE	N/A
Ethernet	2 RJ45 100/1000 Base-T
USB	USB 2.0 x 1 (Front Panel), USB 3.0 x 1 (Rear Panel)
Audio	8 IN / 1 OUT
E-Sata	No
RS485	1
Alarm Input/out	16 IN / 1 OUT
General
OSD Language	English and more
Power Consumption	21W (Without HDD)
Power Supply	DC12V/5A
Working Environment	32°~104°F (0°~40° Celcius)
Working Humidity	Less than 90%RH (Non-Condensing)
Dimensions	14.88" x 13.30" x 2.68" (378mm x 337.7mm x 68mm)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
