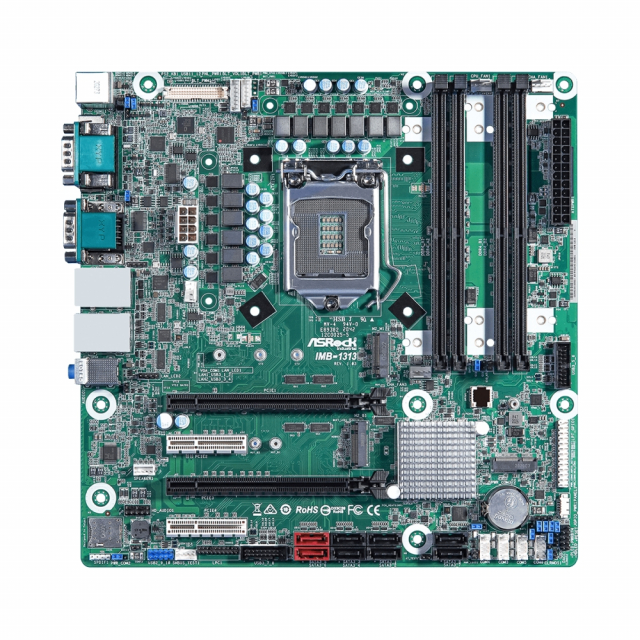

| Dimensions | Micro-ATX (9.6-in x 9.6-in) |
| CPU | Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 125 W |
| Chipset | Intel® Q470E |
| Socket | LGA1200 |
| BIOS | AMI SPI 256 Mbit |
| Technology | Dual Channel DDR4 2933 / 2666 / 2400 MHz - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz |
| Capacity | 128GB |
| Socket | 4 x 288-pin Long-DIMM |
| Controller | Intel® UHD Graphics |
| HDMI | HDMI 2.0a, Max resolution up to 4096 x 2160 at60Hz |
| DisplayPort | DisplayPort 1.2 , DP++ Max resolution up to 4096 x 2160 at60Hz |
| VGA | Max resolution up to 1920 x 1200 at60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200 at60Hz |
| MultiDisplay | Triple Display |
| eDP | eDP 1.4, Max resolution up to 4096 x 2304 at60Hz |
| PCIe | 2 x PCIe x16 Gen3 Slots (PCIE1 / PCIE2: single at x16 (PCIE1); dual at x8 (PCIE1)/ x8 (PCIE3)) (PCIE1: Support riser card x8 / x8, x8 / x4 / x4) 2 x PCIe x4 Gen3 |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.0 / USB 2.0 and SIM for 4G / 5G |
| SIM Socket | 1 x SIM socket connected to M.2 Key B |
| Interface | Realtek ALC887/ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In |
| Controller/ Speed | LAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro |

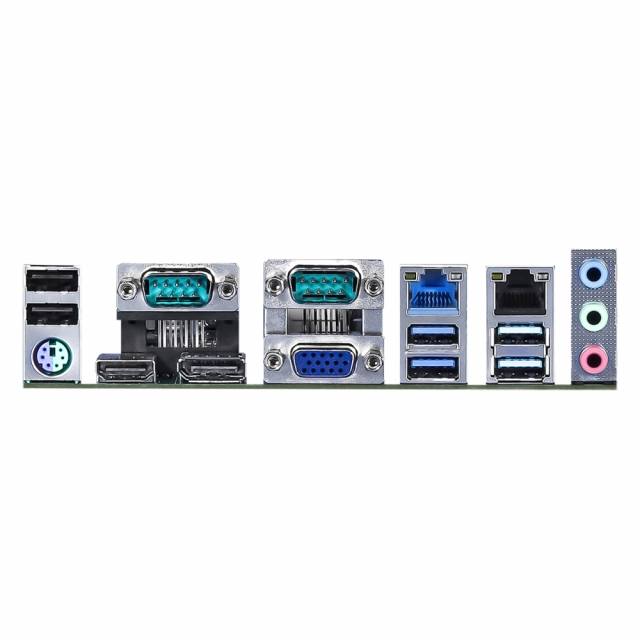

| Connector | 2 x RJ-45 |
| HDMI | 1 x HDMI 2.0a |
| DisplayPort | 1 x DP 1.2 |
| VGA | 1 |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 4 x USB 3.2 Gen2, 2 x USB2.0 |
| Audio | 3 ( Line-In, Line-Out, Mic-In ) |
| COM | 2 x COM (RS-232/422/485) |
| PS2 | 1 |
| USB | 4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header) 6 x USB 2.0 (3 x 2.54 pitch header) |
| COM | 4 x COM (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT header) |
| TPM | TPM 2.0 onboard |
| LVDS | 1 |
| Speaker Header | 1 |
| eDP | 1 (BOM Option support) |
| M.2 | 1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA and PCIe x4 for SSD - When using M.2 PCIe x4 SSD, both SATA3_5 and SATA_6 Ports are disabled - When using M.2 SATA SSD, only SATA3_5 Port is disabled, and SATA3_6 Port is available |
| SATA | 8 x SATA3 (6Gb/s) |
| RAID | Intel® SATA RAID 0/1/5/10 |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Input PWR | ATX PWR (24+8-pin) |
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
