Arimitsu Pumps A8071 TR-713KV Plunger Pump Kit w// Rail and Sheave

Arimitsu Pumps, A8071, TR-713KV Plunger Pump Kit with Rails and 9.7" 2-Groove Sheave

Features:

• Triplex plunger pumps provide smooth liquid flow
• Liquid-cooled, low-drag seals provide long life, improved suction, higher efficiency, and longer dry running without damage
• Balanced flow crankcase design and precision machining ensure uniform lubrication and quiet operation
• The manifold is designed and machined to guarantee the superior fluid flow
• Zero-clearance exclusionary seals protect the crankcase

Quality:

• 100% stainless steel valve assemblies deliver greater temperature and chemical handling abilities
• Precision ground ceramic plungers utilize a proprietary material blend for long life and increased thermal shock resistance
• Forged brass manifolds offer strength and corrosion resistance
• A proprietary, proven seal blend maximizes life and increases maintenance intervals
• Oversized crankshaft bearings for long life and quiet operation

Maintenance:

• No special tools are required for repair or maintenance
• The fluid end is easily serviced without entering the crankcase
• Easy access seal case and valve assemblies
• Seals require no adjustment

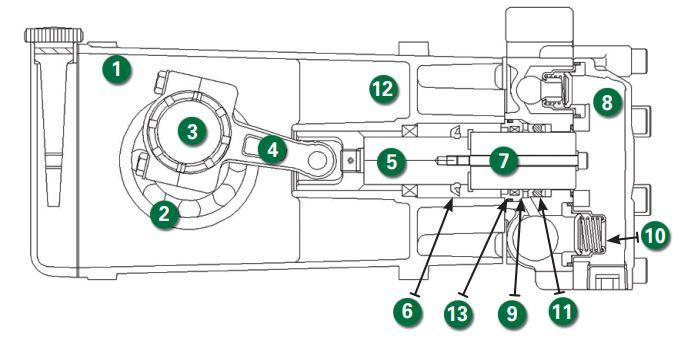

Cutaway:

1. High-strength, lightweight die-cast crankcase
2. Oversized crankshaft bearings for long life and quiet operation
3. The forged crankshaft is machined for low friction, quiet operation, and high efficiency
4. High-strength connecting rods are tolerance matched for extended life and low-friction operation
5. High-polish stainless steel plunger rods for smooth operation and even wear
6. Zero clearance, polymer exclusionary seal protects pump crankcase from fluid entry and will not corrode
7. Proprietary blend, solid ceramic plungers for long wear and increased thermal shock resistance
8. Forged brass manifolds for strength and corrosion resistance, machined to optimize fluid flow and performance while extending the useful life
9. Liquid-cooled, low-drag seals provide long life, extended run-dry ability, and increased suction lift
10. 100% stainless steel valve construction provides superior protection against chemical and temperature damage
11. Mechanically-loaded seals require no adjustment and self-compensate for wear
12. Balanced flow crankcase ensures lubrication and quiet operation
13. Slide-in seal cases mean no special tools are required, making seal replacement easy

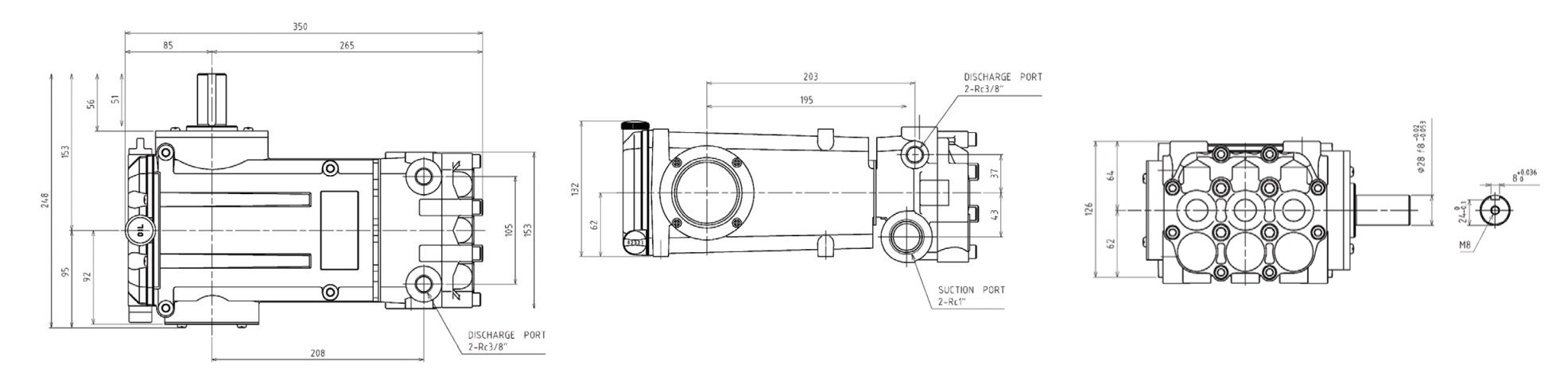

Dimensions:
